Robust Die-Cast Three-Way Corner Connector for Industrial Enclosure & Frame Systems

Introducing our Robust Die-Cast Three-Way Corner Connector, an indispensable component for constructing rigid and reliable industrial enclosure frames, machine guards, and modular workstation systems. Engineered for superior strength and precision, this connector provides a secure three-dimensional joint, simplifying assembly and enhancing the structural integrity of your industrial applications. Manufactured using advanced die-casting techniques, it ensures consistent quality and long-lasting performance in demanding environments.

Keywords:

Three-way corner connector

Category:

Aluminum Die-Casting Series

图片名称

Hotline:

+86-15734160869

Message

Detailed information


Introduction

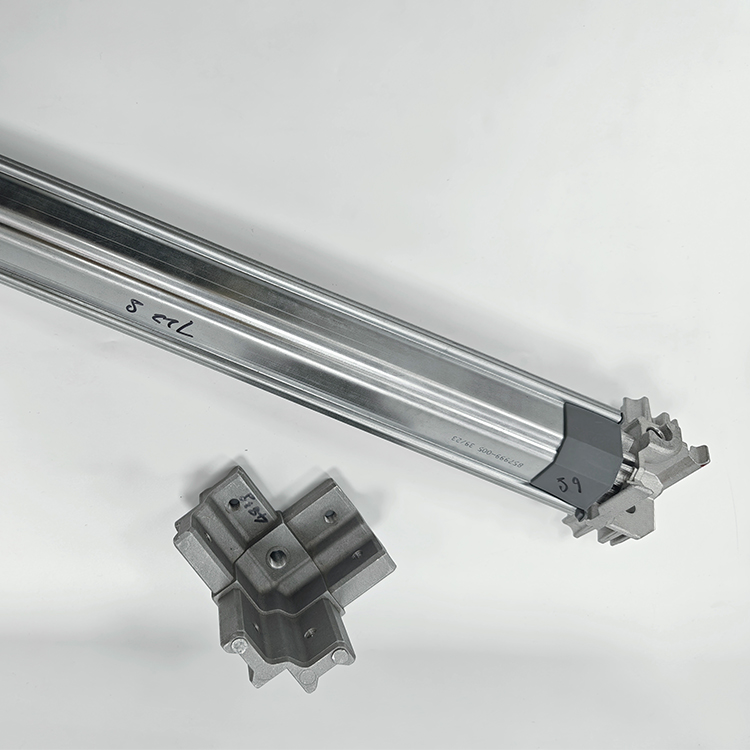

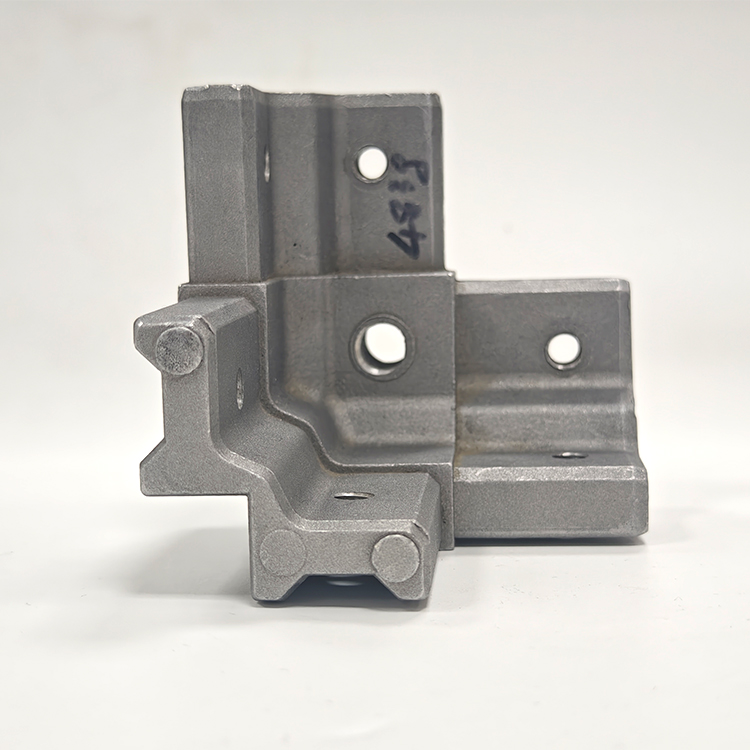

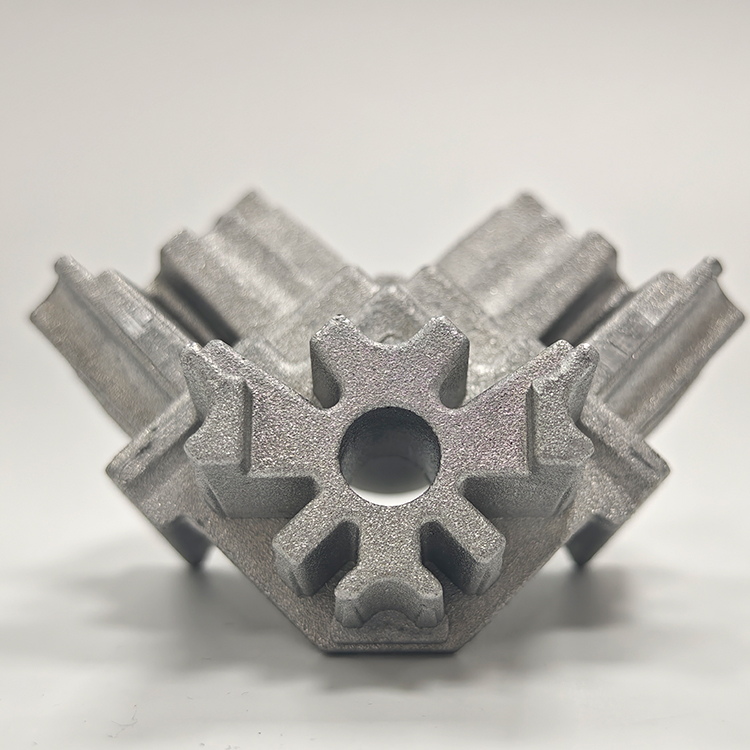

Introducing our Robust Die-Cast Three-Way Corner Connector, an indispensable component for constructing rigid and reliable industrial enclosure frames, machine guards, and modular workstation systems. Engineered for superior strength and precision, this connector provides a secure three-dimensional joint, simplifying assembly and enhancing the structural integrity of your industrial applications. Manufactured using advanced die-casting techniques, it ensures consistent quality and long-lasting performance in demanding environments.

Key Features

•High-Strength Die-Cast Construction: Made from premium zinc alloy or aluminum alloy through a high-pressure die-casting process, offering exceptional strength, rigidity, and corrosion resistance for industrial use.
•Three-Dimensional Connection: Designed to securely join three profiles or frame elements at a 90-degree angle, creating a robust corner for cubic structures, enclosures, and machine frames.
•Integrated Threaded Inserts: Features precision-machined threaded holes (e.g., M6, M8) for direct and secure fastening, eliminating the need for additional nuts and simplifying assembly.
•Optimized for Industrial Profiles: Perfectly compatible with standard industrial aluminum profiles (e.g., 30x30, 40x40 series) or square tubing, ensuring seamless integration into existing modular systems.
•Durable Surface Finish: Typically finished with a powder coating or natural metallic finish, providing enhanced durability and resistance to wear, scratches, and environmental factors.
•Easy and Efficient Assembly: Facilitates quick and straightforward construction of complex frame structures, reducing assembly time and labor costs.

Benefits

•Superior Structural Integrity: Creates extremely strong and stable frame connections, crucial for supporting heavy loads and maintaining the rigidity of industrial equipment.
•Versatile Design Applications: Ideal for a wide range of industrial applications, from electrical enclosures and control cabinets to machine frames, test benches, and safety guarding.
•Simplified Construction: Its three-way design and integrated fastening points streamline the assembly process, making it easier to build complex structures with fewer components.
•Long-Term Reliability: High-quality materials and manufacturing processes ensure the connector withstands harsh industrial conditions, providing a long service life with minimal maintenance.
•Aesthetic and Functional: Offers a clean, professional appearance while providing critical structural support, enhancing both the look and functionality of the assembled system.

Applications

Our Die-Cast Three-Way Corner Connector is perfectly suited for:
•Electrical Enclosure and Control Cabinet Frames
•Industrial Machine Frames and Guards
•Modular Workstations and Assembly Lines
•Aluminum Profile Structures (e.g., 3030, 4040 series)
•Test Benches and Racking Systems
•Automation Equipment Frameworks

Choose our Robust Die-Cast Three-Way Corner Connector for building strong, stable, and efficient industrial frame systems that meet the highest standards of quality and performance.






Certifications & Compliance

  ISO 9001:2015: Quality Management System

  RoHS Compliance: Restriction of Hazardous Substances

  REACH Compliance: European Chemical Safety Regulation


FAQ

1. What manufacturing services does Jinda Industry provide?

  Jinda Industry is a professional custom manufacturing supplier in China, providing one-stop OEM and ODM solutions for global customers. Our manufacturing capabilities include aluminum die casting parts, CNC machining parts, sheet metal fabrication, metal stamping parts, injection molding components, and custom industrial parts manufacturing. From product design and mold development to mass production and final delivery, we help customers complete projects with efficient and reliable manufacturing solutions.

2. Can Jinda Industry manufacture products according to drawings or samples?

  Yes, Jinda Industry specializes in custom parts manufacturing based on customer drawings, 3D files, samples, or technical specifications. Our engineering team can evaluate your product requirements and recommend the most suitable manufacturing process, including die casting, CNC machining, stamping, sheet metal fabrication, and injection molding. We support customers from prototype development to full-scale production, ensuring optimized design, stable quality, and competitive manufacturing costs.

3. Why choose Jinda Industry as your OEM manufacturing partner?

  Jinda Industry provides reliable OEM and ODM manufacturing services with strong engineering support, advanced production capabilities, and strict quality control systems. As an experienced China manufacturer, we help customers reduce development costs, improve production efficiency, and achieve consistent product quality. Our one-stop manufacturing solution allows customers to manage design, tooling, production, finishing, and delivery through one trusted supplier.

4. How does Jinda Industry ensure product quality?

  Quality control is integrated into every stage of our manufacturing process. Jinda Industry performs strict inspections including raw material verification, production process monitoring, dimensional inspection, surface finish inspection, and final product inspection before shipment. Our quality management system ensures that every custom metal part, die casting component, and precision machining part meets customer specifications and international requirements.
